PF-K1-BD
Features

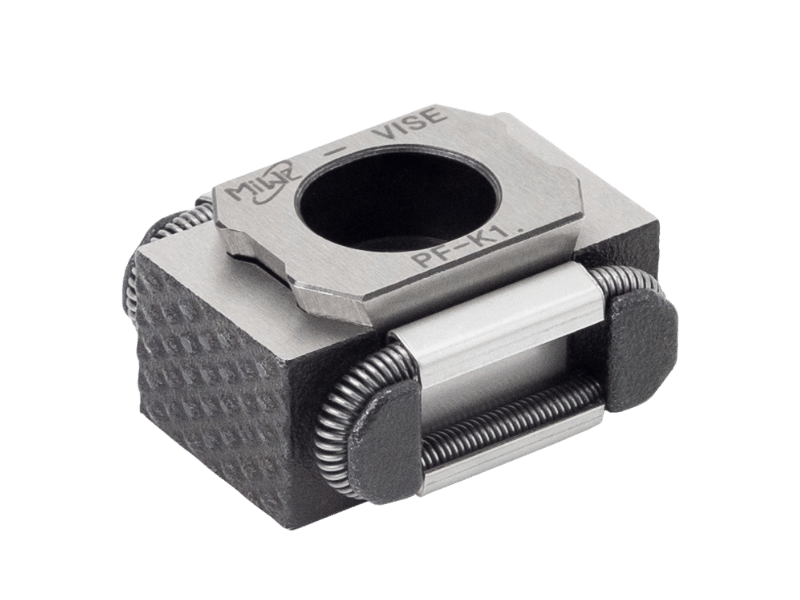

The Easy Vise, also called OK-Vise, is a small and versatile clamping tool that uses a screw mechanism to apply clamping force. Dual-side springs allow elastic extension and contraction, making it highly flexible for holding various workpieces securely. Key Features • Screw-driven clamping force for reliable workpiece holding • Dual-side springs for elastic expansion and contraction • Compact and portable design for easy handling • Convenient alternative to traditional bench vises

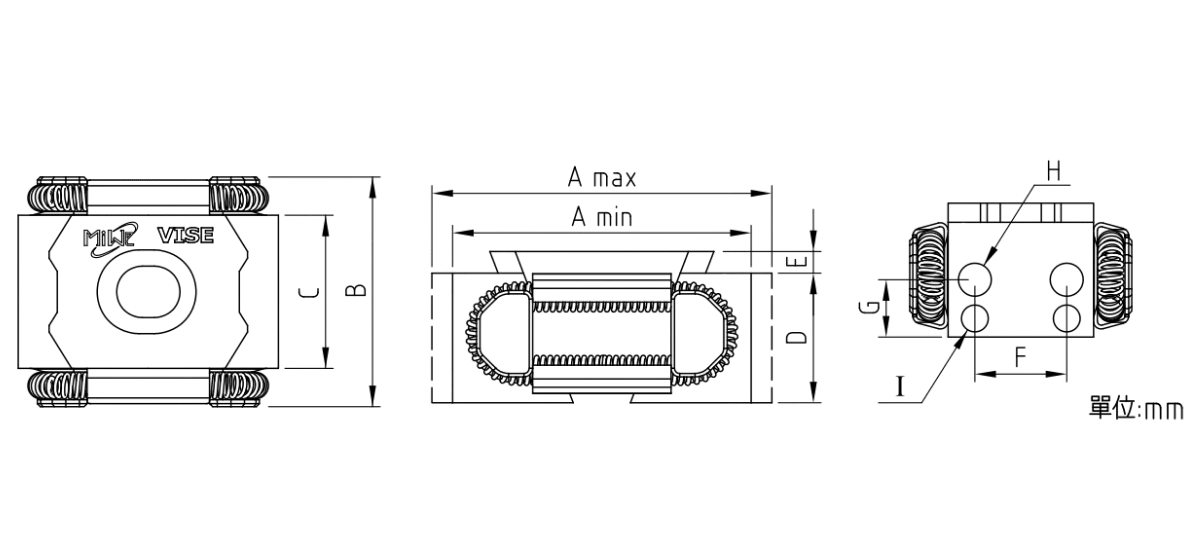

| MODEL NO. | A min | A Optimum | A Max | B | C | D | E | F | G | H | I | Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PF-K1-BD | 35.5 | 37.5 | 39.5 | 31 | 20 | 15 | 2.5 | M8 |
