VSE-9598-B
External Profile Clamping Fixture (Wrap-Around Type)
Features
• Pneumatically actuated for fast and reliable operation
• Wrap-around external clamping design for uniform clamping force
• Replaceable soft jaws customized to match workpiece profiles
• Suitable for round, irregular, and complex-shaped workpieces
• Workpiece clamping range: Ø20 mm to Ø85 mm
• Can be installed individually on machine tables
• Multiple units can be connected in series for higher productivity
• Ideal for automated loading and unloading systems
• Supports simultaneous machining of multiple workpieces
• Reduces fixture manufacturing costs and setup time
• Improves machining accuracy and process stability
Specification
| Item | Model | Fixture Type | Acutation Method | Clamping Principle | Soft Jaw | Workpiece Size | Installation | Suitable Equipment |
|---|---|---|---|---|---|---|---|---|
| Specification | VSE-9598-B | External Profile Clamping Fixture (Wrap-Around Type) | Pneumatic | External Wrap-Around Clamping | Replaceable | Ø20～Ø85 mm | Single Unit or Multiple Units Connected in Series | CNC Machining Centers and Automation Systems |
Description
Product Overview
The VSE-9598-B External Profile Clamping Fixture is a pneumatically actuated workholding solution specifically designed for CNC machining centers, automation fixtures, and precision machining applications. Utilizing a wrap-around clamping mechanism, it securely grips the external profile of a workpiece, providing excellent clamping stability while enhancing machining accuracy and productivity.

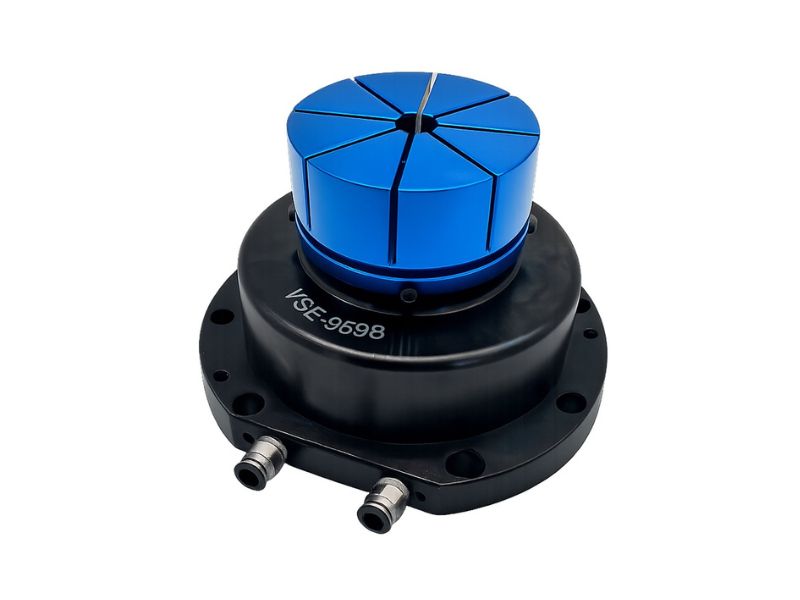

The blue component located on the top of the fixture is a replaceable soft jaw that can be custom-machined to match the shape and contour of the workpiece. This allows the clamping surface to fit precisely against round, irregular, or uniquely shaped components, making it ideal for high-precision machining applications. The custom-machinable soft jaw design ensures even distribution of clamping force, reducing the risk of workpiece deformation while improving repeatability and positioning accuracy.
Applications
- CNC Vertical Machining Centers
- 5-Axis Machining Centers
- Automated Production Lines
- Automotive and Motorcycle Components
Advantages
The VSE-9598-B enables users to quickly customize soft jaws according to the workpiece profile, significantly improving clamping stability and machining precision. Its modular design allows flexible configuration as either a standalone unit or a multi-station setup based on production requirements.
The fixture is particularly suitable for high-mix, low-volume production as well as automated mass-production environments. By improving machine utilization, reducing setup time, and enhancing process consistency, the VSE-9598-B helps manufacturers achieve greater productivity and lower overall production costs.
